GYA Part No. & Description

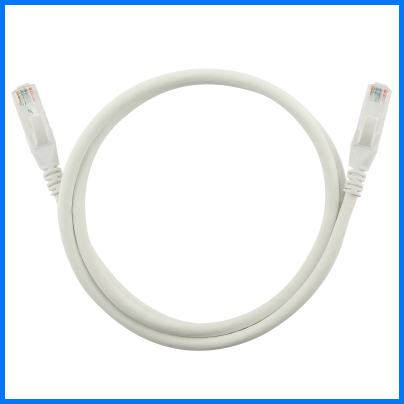

UT6AXXX : Cat.6A UTP Stranded Round Patch Cord Molded PVC/LSOH
Advantages:
Third party Verified UL, RoHS, ISO compliant.

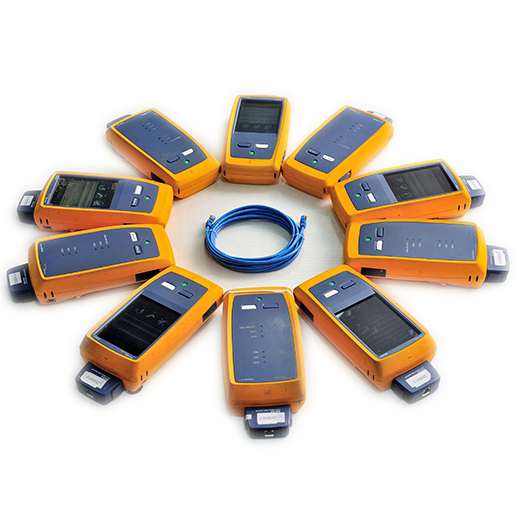

Can pass 100% component test, exceeding TIA limits.
Support 10G Base-T application.
Unique boot/plug design.
PoE++ /4PPoE Compliant
Compliant Network Standards:
10BASE-T 100BASE-TX 100BASE-T4
1000BASE-T 10GBASE-T ATM-25
ATM-51 ATM-155 100VG-AnyLan
TR-4 TR-16 Active TR-16 Passive
GYA reference color code:
1.Grey 2. Blue 3.Yellow 4.Red 5.Green 6.White 7.Black
Packing rate:
| No. | Specification Cat.6A UTP (length) | Q’TY | G.W. KGS/Carton | Carton Dimension |
| PCS/Carton | (Length*Width*Height, CM) | |||
| 1 | 0.5M | 350 | 11 | 40*38*29CM |
| 2 | 1.0M | 200 | 13 | 40*38*29CM |
| 3 | 1.5M | 150 | 15 | 40*38*29CM |
| 4 | 2.0M | 130 | 17 | 40*38*29CM |
| 5 | 3.0M | 100 | 19 | 40*38*29CM |
| 6 | 5.0M | 60 | 15 | 40*38*29CM |
| 7 | 10.0M | 35 | 14 | 40*38*29CM |
Wire Colour Code :
Specifications：
Cable:
Use Cat.6A U/FTP or S/FTP cable, bare copper conductor 26AWG
Cable jacket: PVC or LSZH cable jacket
Flame retardant: IEC60332-1, CM, CMR, CMP

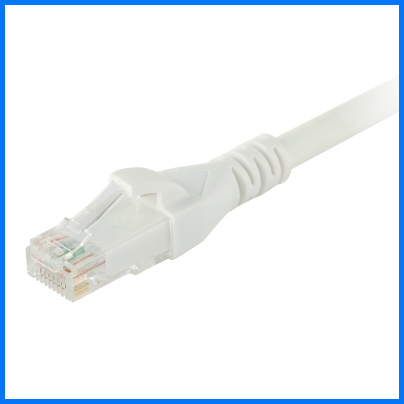

Modular Plug:
50U" or other gold plating thickness for your choice.Various plug colors for options.
Boot: Unique design for favorable appearance
OEM/ODM always welcome
We are recognized with good reputation in Structured Cabling Industry and have the pleasure doing OEM/ODM for many good brands.

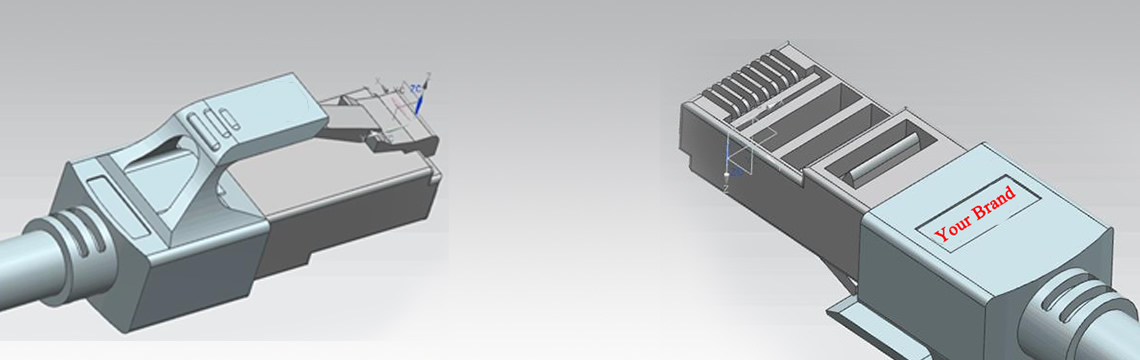

Unique design of boot with your brand
Customized Logo on Plug
OEM Printing on Cable

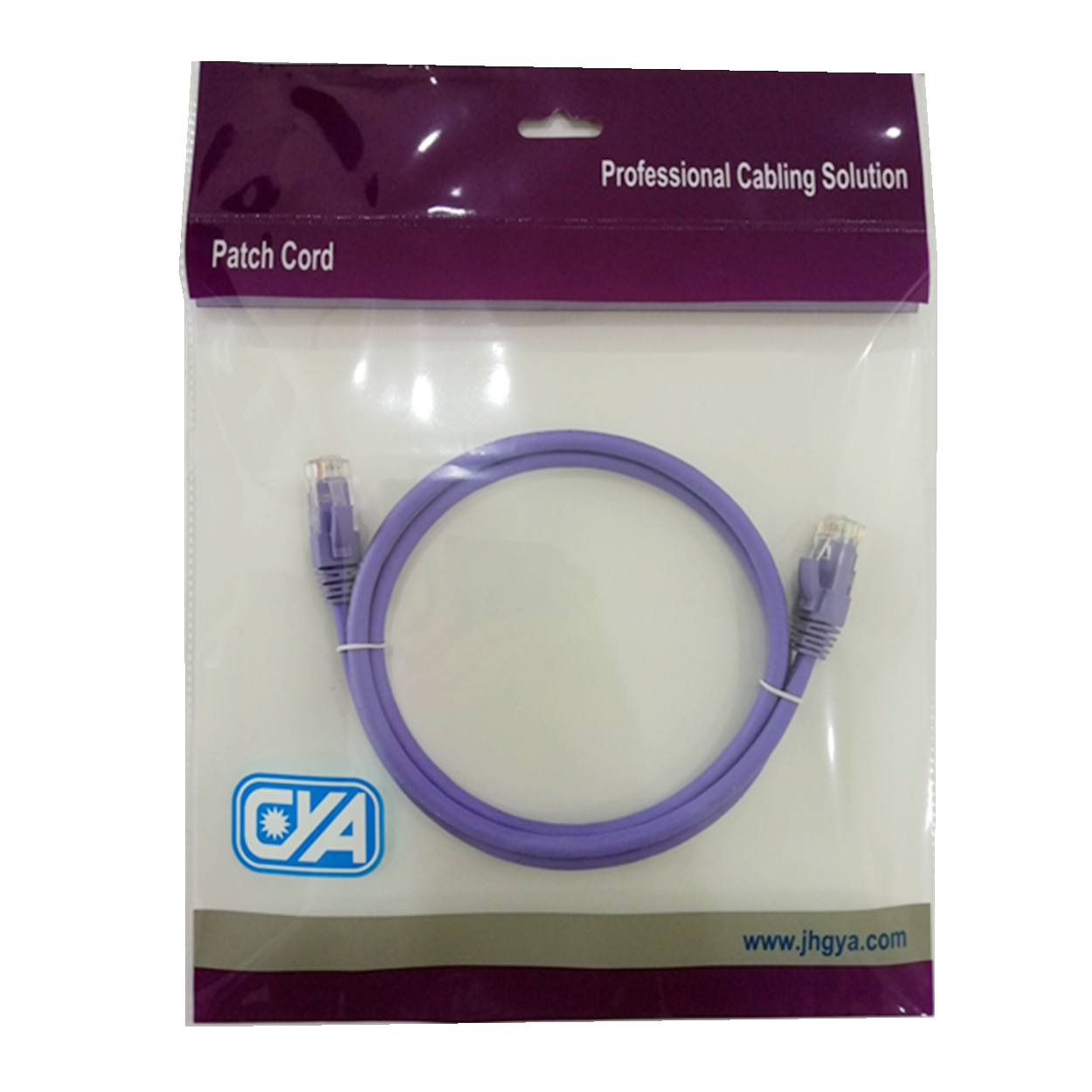

OEM Design on Package & Label
Different Color & Different Lengths Available
