CAT.7
CAT.7 STP plug 2 parts 4up 4down

GYA Modular plug meet the following standards:

ANSI/TIA-568.2-D

ISO/IEC 11801

ANSI/TIA-1096-A (FCC Part 68)

UL1863

IEC 60603-7

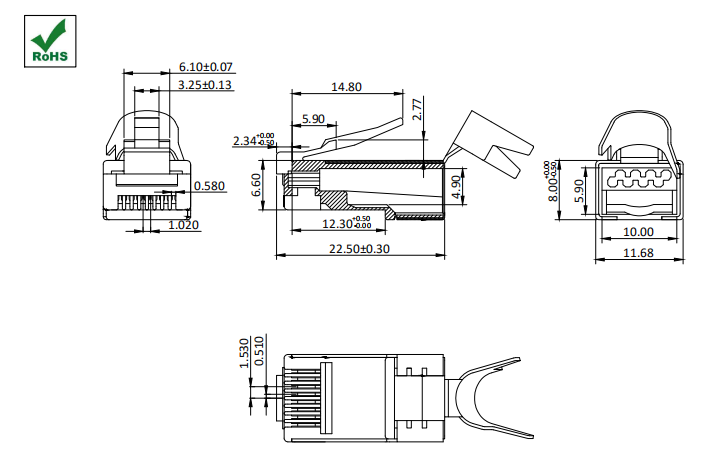

CAT.7 STP plug 2 parts 4up 4down

GYA High quality CAT.7 RJ45 8P8C STP Modular plug.


Use Teijin PC material with excellent transpacy, flexibility and durability.

Full gold thickness FU", 03MU", 6U", 15U", 30U",50U".

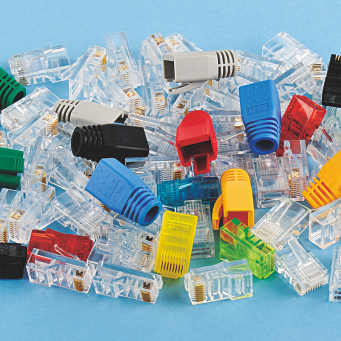

Different colors are all available.

Our modular plug are UL, RoHS & REACH certified.


All colors are available

Small MOQ for long term working relationship

Welcome for OEM/ODM






GYA Part No. & Description:

GSC7RE50V2S1I1D Cat.7 STP two parts 4up 4down Modular Plug designed for Stranded STP Lan Cable

GSC7RY50V2S1I1D Cat.7 STP two parts 4up 4down Modular Plug designed for Stranded & Solid STP Lan Cable

E: means 2 prongs for stranded wire

Y: means 3 prongs for stranded and solid wire



Gold Plating:

Fu" /0.016um ,1u" /0.0254um ,3u"/0.076um, 6u"/0.l5um, 15u"/038um, 30u"/0.76um, 50u"/1.27um



Inspection for Environmental Protection:

Based on the performed tests on submitted sample,

The test results are Compliant with the limits of ROHS & REACH.


Electrial Characteristics:

Rated Current: 125V AC, 1.5A@25°C

Contact Resistance: 20M Ohm Max

Isulation Resistance:500M Ohm Min, 100V DC/min

Voltage Proof: 1000V AC/1 minute no breakdown



Mechanical Characteristics:

Insertion Force & Withdrawal Force : 20N Max

Durability: 750 cycles Min


Gold Plate Inspection:

Per MIL-G-45204C TYPEII (99% pure gold minimum)

Grade C+ (knoop hardness range 130-250)

Class 1(50 micro inches minimum thickness)


Material & Finish:

Housing Material: Polycarbonate (PC)

Contact blade: High strength copper alloy [JIS C5191R-H(PBR-2) ]. 100 micro inches nickel under plated & gold selected BSI EN 60603-7/(IEC60603-7)

Operation Temperature: -40°C~+85°C






We are recognized with good reputation in Structured Cabling Industry and have the pleasure doing OEM/ODM for many good brands.


OEM Logo on Plug

OEM Design on Package & Label
